7 1/4" Gauge Power Bogies




Click to enlargeClick to enlargeClick to enlarge

SPECIFICATION

Dimensions

  • Wheel size 127mm (cut from 5" dia blank) EN8 steel
  • 1" diameter axles
  • Length 530mm
  • Width (frame) 265mm
  • Height 150 mm (rail to underside of cross plate unloaded)
  • 12" (300mm) wheel base
  • Minimum recommended radius - 15 feet (4.5m)

Optional Extras

  • 8mm steel cross plates
  • High amperage plugs
Technical
  • Medium - to heavy duty
  • 8 x 150w motor
  • 10-12mph at 24v
  • Steel spur to Delrin gear - direct drive
  • 8 motors = reduced tooth loading
  • 8 vibration mounts per bogie

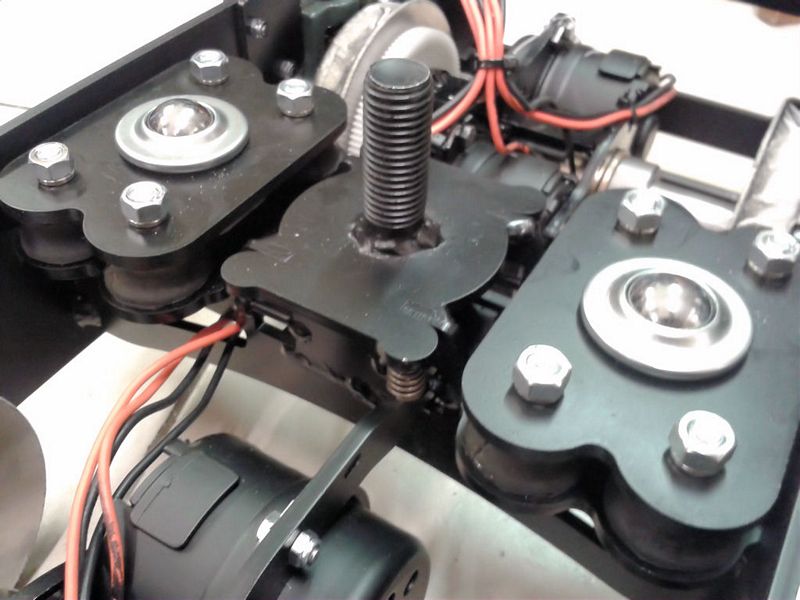

  • 2 ball transfer units per bogie for reduced friction turning
  • Load transfer always to centre of the bogie
  • Individually sprung axle boxes - commercial UCT take up bearings

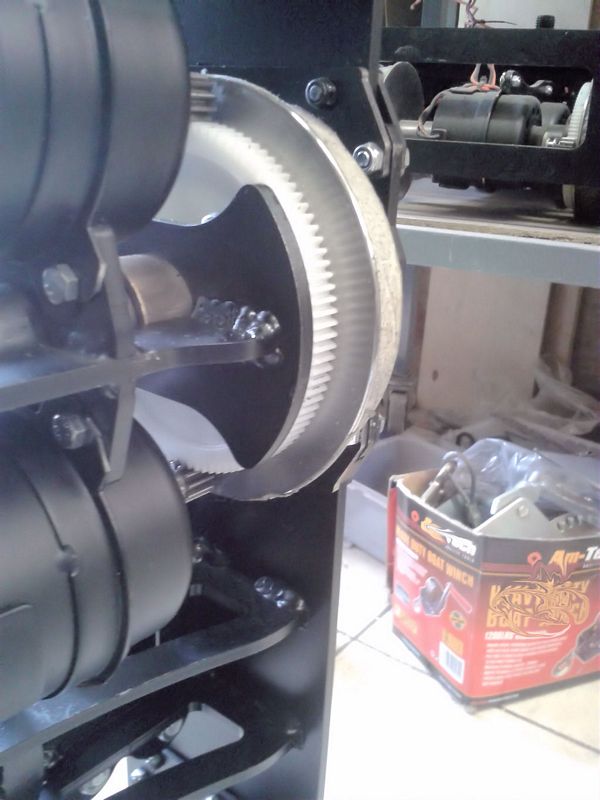

DELRIN - STEEL GEARS
  • Steel motor spur gear (drilled and pinned) driving wheel mounted Delrin gear.

  • 30% less wear then steel to steel gears.

  • Quieter than steel to steel gears.

  • Low tooth load due to twin motors - no risk of tooth loss from motor use.

  • High regenerative braking possibility (on test 70 amps back to the batteries).

  • Impact will damage most transmission systems. A damaged Delrin gear will not damage other gears. Low replacement cost.
