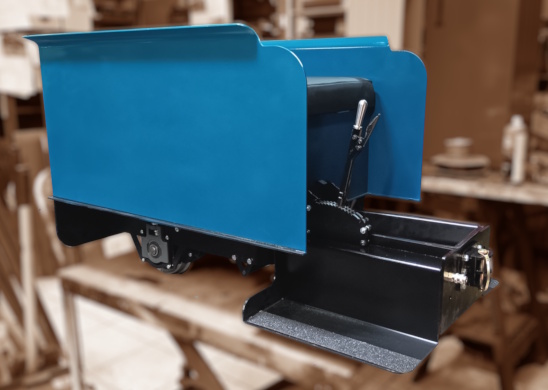

7 1/4" Driving Truck



Click to enlargeClick to enlargeClick to enlarge

SPECIFICATION

Dimensions

    Length

    • 31 inches over buffer beams
    • 35 inches over couplings

    Wheels EN8 Steel,

    • 5 1/4 inch diameter
    • Narrow gauge profile

    Wheelbase

    • 21 inches

    Weight

    • Chassis 79 pounds
    • Body 29 pounds

    Internal dimensions

    • Length 31inches
    • Width 12 1/2
    • Height 7 1/2 inches

    Optional Extras

    • Brake disk and caliper
    • Vacuum pipe pass through
    • Custom paint colour
    • Vacuum pump, battery and control system
    Technical
    • Ratchet brake
    • Body made from 1" birch plywood
    • Powder coated metal strap - held on with 72 screws
    • 5mm steel chassis
    • Commercial take up self aligning bearings
    • 1" diameter axles
    • Running boards lock in raised or running position. Can be permantly locked with a bolt
    • Composite foam (1" soft + 1" crumble) seat with roped edging.
    • Glass/nylon mix brake shoes


    Price quoted includes VAT.
    Click for PRICE
