Dimensions
Length
- 620mm - end frame to end frame
Width
- of frames 285mm
- over cranks 410mm
Height
Wheels EN8 Steel,
- 200mm diameter (over flange)
- Narrow gauge profile
- 25mm diameter axle
Wheelbase
Optional
Extras
- Electronic brake (automatically operated by
the iDrive
- Belt driven version - no cranks
- Uprate motors
- Cross plate - flat or channel
|
Technical

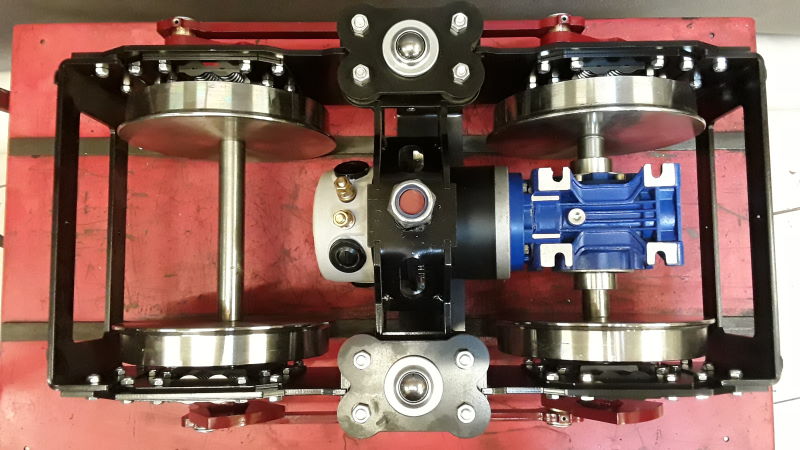

- 5mm steel chassis
- Commercial self aligning bearings
- 25mm diameter axles with 8mm keyway
- Oilite bushes with oil cups for cranked version.
- Vibration mounts and transfer bearings
- Motor
- 1HP motor - S25 duty cycle - 20 minutes
continious use.
- Peak output over 1.5HP per motor
- 4 pole 24v
- High quality Italian made
- Worm drive oil filled gearbox - will freewheel
- 8mph on 10:1 reduction or 11mph on 7.5:1
reduction box
Notes
The design of these bogies comes from approaching a commercial
motor/tranmission company and asking for a drive solution which would

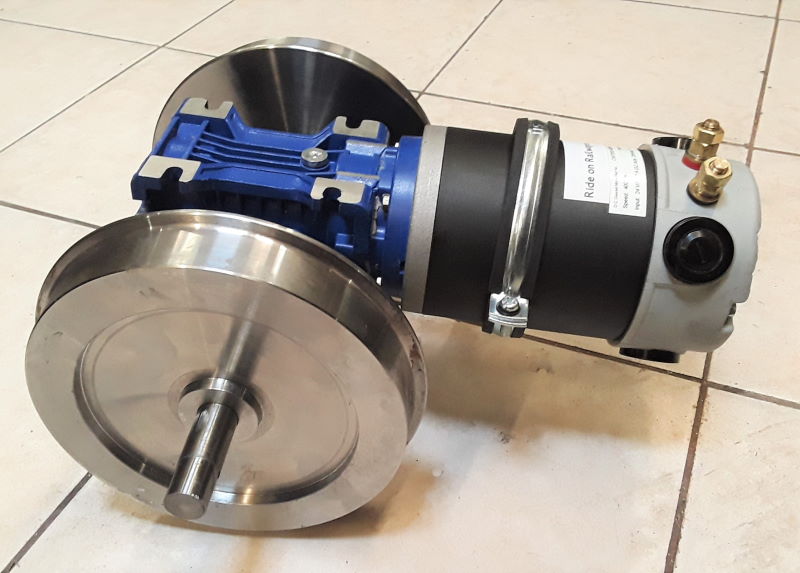

be robust and maintenance free. The solution of axle mounting a motor
gearbox assembly direct on to the wheel set provides direct power with
virtually no tranmission noise,.
I
don't do chains. They stretch and need constant oiling. Toothed modern
rubber belts do not stretch and will out last many chain sets while
needing no lubrication. Belts are almost silent in operation.
|
