7 1/4" Sit In Bogie Coach



Timber version


Click to enlargeClick to enlargeClick to enlargeClick to enlarge

SPECIFICATION

Dimensions

  • Bogie wheel size 127mm (cut from 5" dia blank) EN8 steel
  • 1" diameter axles
  • Length 2550 mm
  • Width 550mm
  • Minimum radius - 20 feet (4.5m)

Optional Extras

  • Braking Systems
  • Different lengths/widths
  • Disk brakes
  • Pass through electrics
  • Cushions
Technical
  • Welded channel section steel chassis
  • CNC cut Birch plywood or *Compact grade laminate board body work
  • Low step to allow for persons with difficulties with steps
  • *Maintenance free bodywork
  • Lift out panels for access to bogies
  • Very stable -
    •  You can stand on the sole bar and the coach will not tip
    • Low seating
    • 526mm width keeps passengers centee of gravit over the rails
    • Optional side opening to help those with mobillity issues - transfer form wheelchair
    • Low chassis will not turnover with a derailment
If you want a cheap coach then do not bother to read on. This coach is for those who are willing to invest in a robust design and have a highly durable coach.

Compact Grade Laminate -
Advantages
  • High density material - very tough and durable
  • Core is made from resin and wood fibre with formica colour faces
  • Maintenance free - colour fade resistance and will not require painting
  • Heavy - addition 50kg in weight
Disavantages
  • Heavy
  • Expensive. Compact grade laminate is about four times the price of a high quality plywood.
Birch Plywood-
  • Extremly durable plywood. Will not delaminate when wet
  • Allows for colour change
  • Plastic edge bead
  • Reduced cost
Disavantage
  • Painted surfaces are not as durable as laminate
  • Any damaged paint work will need attention
All coaches are made to order and so lead time depends on current order book with a minimun of 6 weeks.


SAFETY

Every coach will be supplied with a full "Operation and Maintenance Manual". This has full instructions including maintnence regimes and log book. As a passenger carrying vehicle we recommend basic checks everytime before use and a major inspection and sign off at least every six months.

While a coach will not tip over, the design of a good station will help with those who may cause issues. To tip an empty coach (plywood ver) you need to be over 100kg and stand on the sole bar of the chassis. This is highly unlikely but just incase good track design can ensure there are never any issues.

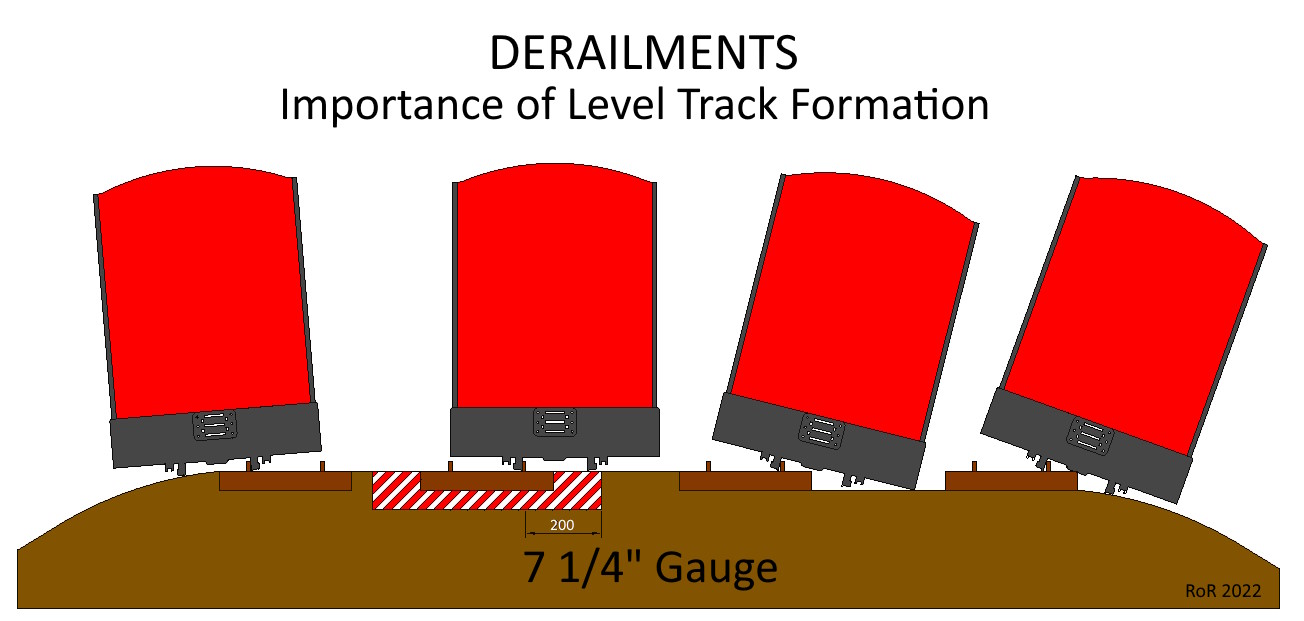

Importance of a platform

It is essential that track formation is made up around the track to help incase of a derailment. Ballast should always be brought up to the level of the top of the sleepers.


Good formation helps with stability
