Dimensions
Length
- 850 mm / 33 1/2 inches over buffer beams
- 890mm / 36 1/2 inches over couplings
Width
- 585mm / 23" to outside of footboards
- 367mm / 14 1/2" to outside of body
Height
- 440mm / 17 1/4" from rail to cushion top
Wheels EN8 Steel,
- 133mm / 5 1/4 inch diameter
- Narrow gauge profile
Wheelbase
Weight
- Chassis 36kg / 79 pounds
- Body 13kg / 29 pounds
Wooden Body Internal dimensions
- Length 737mm / 29 inches
- Width 318mm / 12 1/2 inches
- Height 190mm / 7 1/2 inches
|
Technical

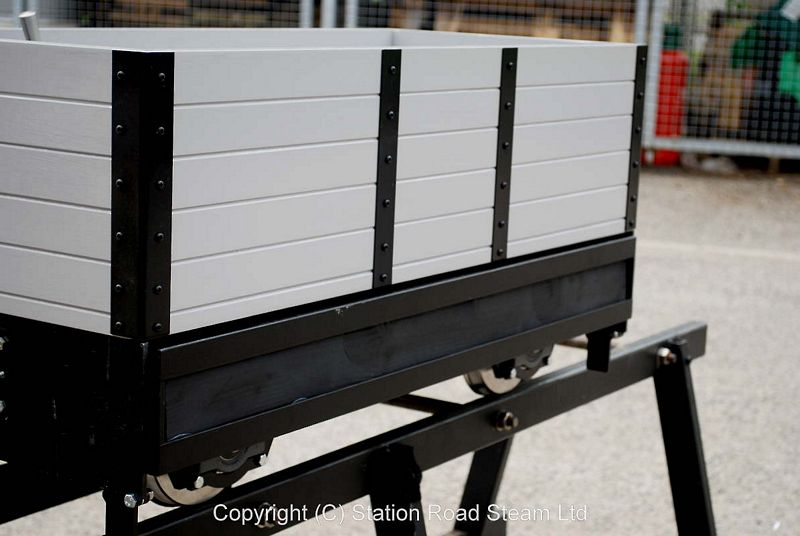

- Body made from 25mm birch plywood
- Powdercoated metal strap - held on with 72
screws
- 5mm steel chassis

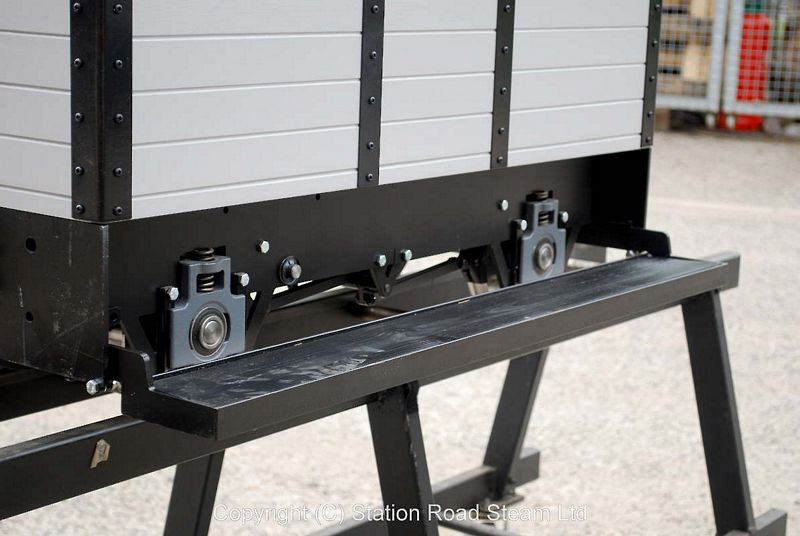

- Commercial take up self aligning bearings
- 1" diameter axles
- Running boards lock in raised or running
position. Can be permantly locked with a bolt
- Composite foam (1" soft + 1" crumble) seat with
roped edging.
- Glass/nylon mix brake shoes
Optional
Extras
- Custom colour
- Additional seat
- Vacuum actuator applied brakes
- Pass through piping with quick release fittings
Safety Note
This
driving truck is not suitable for carrying members of the public as
passengers without ensureing they are fully aware of potential trapping
risk between running boards/body end and other rolling stock.
Full user instructions supplied with the
truck.
|
