Dimensions
Length
- 1220mm (48") - buffer beam to edge of
foot
board
Width
- 635mm (25") - top of body
- 590mm (23.25") - deck
Height
- 705mm (27.8") from rail to top
Wheels EN8 Steel,
- 8 inch diameter (over flange)
- Narrow gauge profile
Wheelbase
- 500mm (19.75 inches) min easy run radius
5m
(16.5 feet)
Optional
Extras
- Battery powered 150 psi water pump and
connectors
- 18 ltr water tank
- Vacuum pass through pipe
- Vacuum pump, gauge and control (truck
only)
- Sprung buffers (rear only)
|
Technical

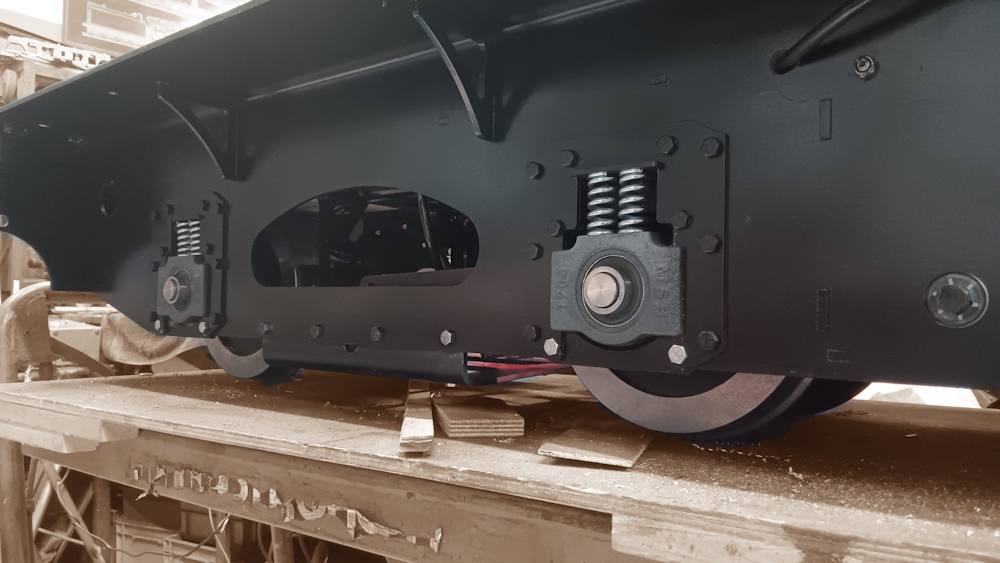

- 5mm steel chassis
- 3mm steel body with flared top
- Commercial self aligning bearings
- 32mm (1.25)" diameter axles
- Composite foam (1" soft + 1" crumble) seat
with
double stitched edging.

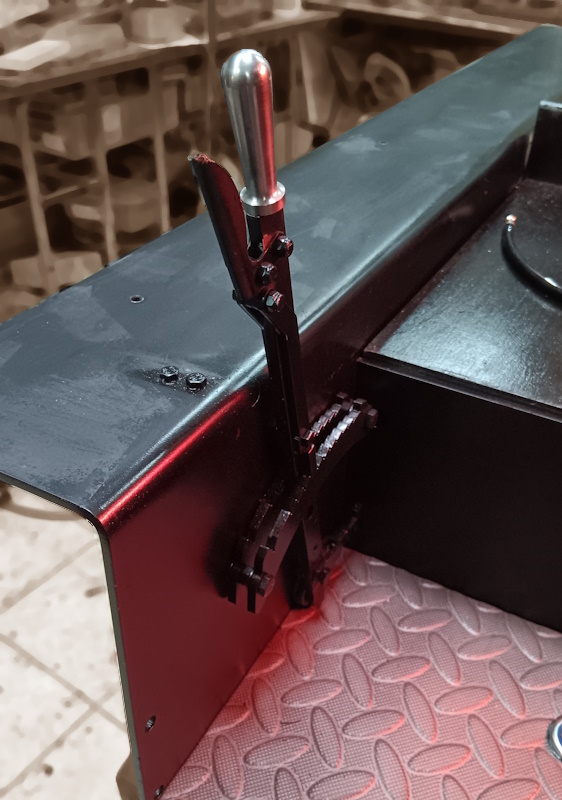

- Ratchet brake with composite brake shoes on
each wheel
- Low foot position
- Comfortable seating position - soul to bum
height of 350mm (14")

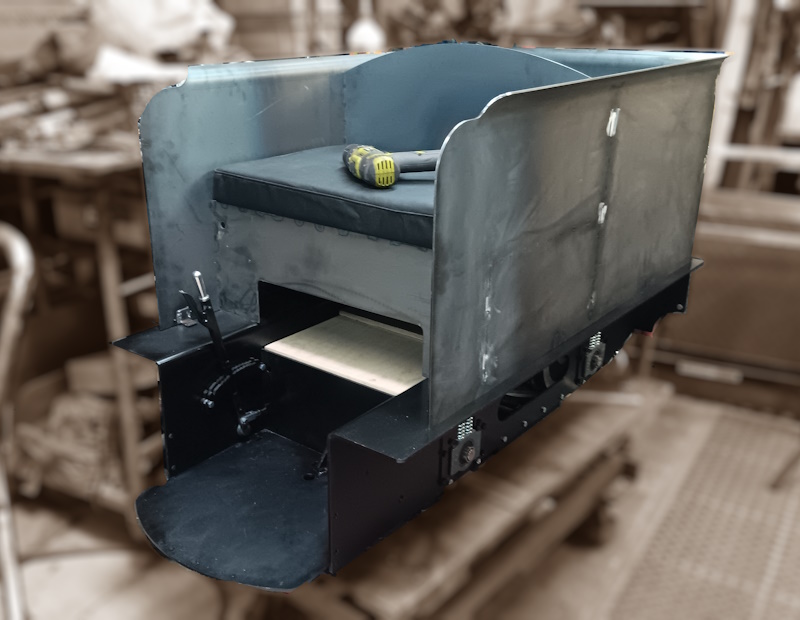

Tender Version
- Rear space for water tank
- Under seat compartment.
Notes

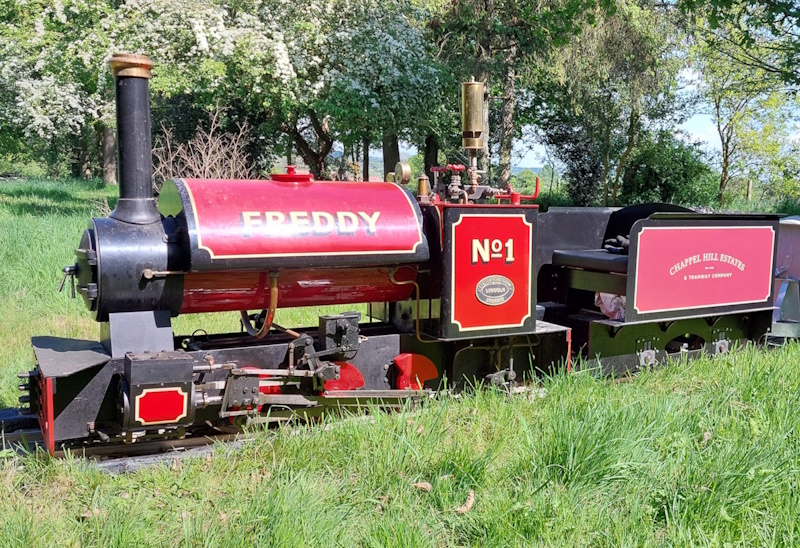

- This
truck has been designed to allow the rider to
be in a low stable
postion behind any loco allowing for long
comfortable driving sessions.

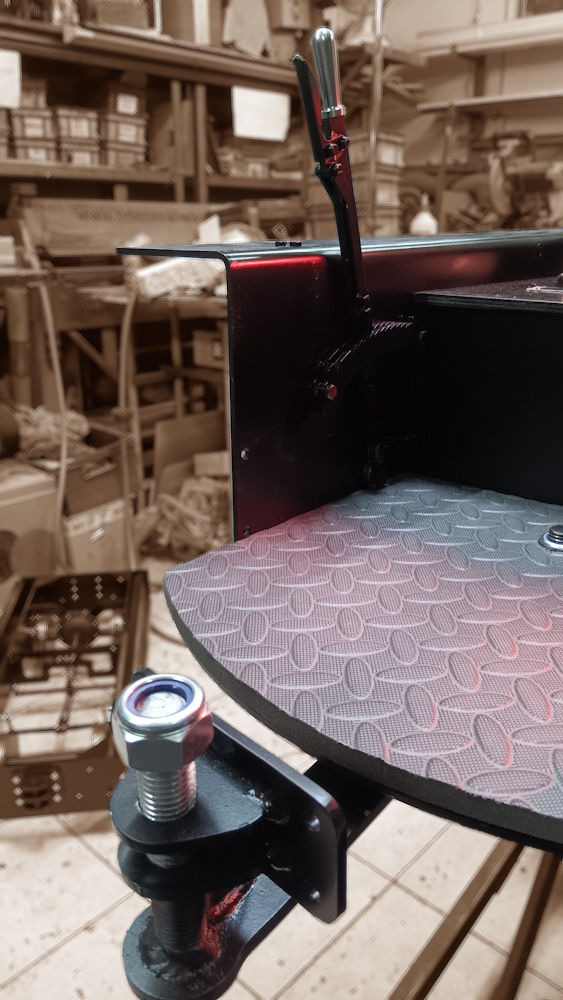

- This
truck is connected to the loco with a bar
under the foot well. This
requires the supplied coupling to be bolted to
the bottom of the loco
buffer beam . Can be put on inner face of
buffer beam, if
necessary.
- If
asking for water and/or vacuum connections
please specify side required.
|
